Product Details:
Payment & Shipping Terms:
|
| Open Style: | Automatic/Manual | Door Material: | Sandwich Board 50mm,Both Side 0.5mm Galvanized Plate Steel |
|---|---|---|---|
| Surface Finishing: | Finished With Coating | Opening Way: | Wall Switch And Pull Rope Control |
| Position: | Logistic Warehouse | Color: | RAL9003 Standard， Other Colors Are Customized |
| Door Panel Height: | Standard H=500mm | Panel Thickness: | 40±2mm,50±2mm,80±2mm |
| Panel Facial Pattern: | Ribbed | Wind Resistance: | ≥700pa |
| Open Speed: | 0.25m/S | Max Width: | W=11350mm |

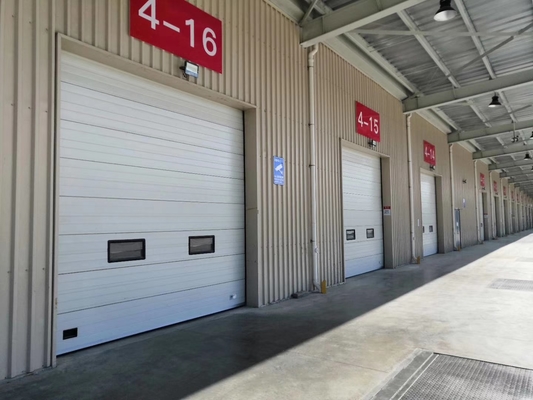

Industrial Overhead Sectional Door:
Overhead industrial sectional door is one of most widely used industrial doors at present. Every factory can use such doors because its higher running,speed, high operation frequency, good thermal insulation, and low maintenance,compared with traditional roller doors.
Industrial Overhead Sectional Door is Slide-running design. Door panels are connected end to end through C-type rails.Whole door body can bend flexibly and slide along guide rails with different bending shapes. It can be fit onto various kinds of door holes. Thus, it is very widely used in all kinds of factories, logistics warehouse, and garages.
Sectional garage doors are available in many different styles and colours which many customers have used to their advantage with endless design possibilities making their sectional door completely unique. Sectional garage doors come in 3 materials, steel, aluminium, and timber. Different designs and colors can be added, making it possible to match the door to your home's existing style. Sectional garage doors are also durable, energy-efficient, and noise-reducing due to their insulation features.
As an experienced industrial doors manufacturer, King Lift door can provide high quality sectional industrial doors with competitive pricing.
| Model No | Size | Lift Type | Control Way | Pannel Thickness | Voltage | Vision Window options | Speed |
| KLSD3030-V | W3000×H3000mm | Verticle Lift Up | Wall Switch | 40±2mm | 220V/380V | Non | 0.25m/S |
| KLSD4040-S | W4000×H4000mm | Stand Lift Up | Pull Rope | 50±2mm | 220V/380V | 660*330 1pcs | 0.25m/S |
| KLSD4050-H | W4000×H5000mm | High Lift Up | Remote | 80±2mm | 220V/380V | 660*330 2pcs | 0.25m/S |
|
***Size:Max width W=11350mm, Other size can be customtized. |
|||||||
| ***Lit Type: Different lift type design based on :1. The height of door opening 2.The Height between floor level to ceiling | |||||||
| ***Control Way:Standard is Wall Switch + Pull Rope. Others are options | |||||||
| ***Pannel Thickness: Normally is 40mm±2, more thicker is better thermal insulation. | |||||||
| ***Voltage: customized is available | |||||||
| ***Vision Window Nos as customer requirements | |||||||
| ***Safety Precautions:Wire rope breaking protection device, Spring breaking protection device... | |||||||
*** Standard pannel H=500mm***
***VISION WINDOW Nos and MAN DOOR As customer's requirements to design***

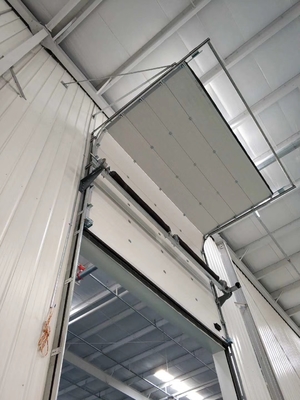

***Industrial Door Structure***

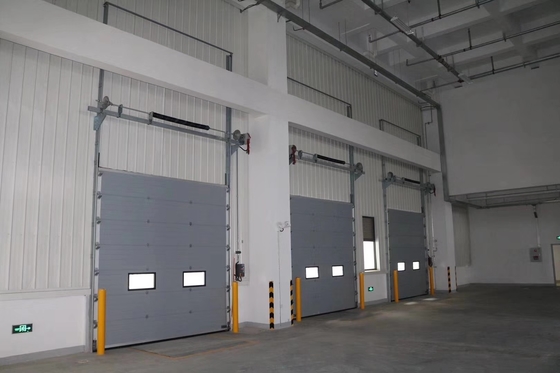

Industrial Door Lift Up Type and Open Way:
